Modular 3U MTP/MPO-LC Patch Panel

Product Show/ PRODUCT

Copyrights Reserved

Product description/ PRODUCT

The Hanxin High Density fiber patch panels are designed to accommodate high density applications in Data Centers and Telecommunication environments. This factory pre-populated and tested Fiber Patch Panel saves on-site installation time and increase reliability. The design of enclosure allows for easy connection to the LC adapters using Hanxin’s multi-fiber optical patch cords (sold separately) and is mountable in a standard 19in or 23in rack or cabinet frame. Maximum expandable to 288 LC ports. The rack mount MTP/MPO patch panel is a high density, modular (HX-J MTP/MPO Cassette or HX-K Adapter Plate), fullyloaded LC Flat 3U fiber patch panel. It is a complete Fiber Adapter Panel based turnkey solution with a total of max 288 LC fibers (144 Duplex LC) in 3U. This modular fiber patch panel is factory preloaded with Qty. 12 12/24 fiber LC Duplex HX-J MTP/MPO Cassettes (HX-K Adapter Plates ) or Qty. 8 36 fiber LC Duplex HX-J MTP/MPO Cassettes for quick implementations in 10/100G networks.

Features/ PRODUCT

● UP to 288 Fiber LC Ports in 3U
● Qty. 12 HX-J MTP/MPO Cassettes with 12/24 LC
● Qty. 8 HX-J MTP/MPO Cassettes with 36 LC
● Qty. 12 HX-KMTP/MPO Adapter Plates with 12/24 LC
● Flexibility to Mix Adapter Plates with Cassettes in Patch Panel
● Available in SM, OM1, OM2, OM3 and OM4 fiber grades
● Flat Front Panel for Optimal Cable Routing
● Removable Top for Easier Fiber Cable Management
● Easily Accessible MPO/MTP Ports for Connection to Trunk Cable
● Compliant IEC-61754-7, EIA/TIA-604-5 & RoHS
● Factory terminated and tested
● MPO/MTP components feature superior optical and mechanical properties

Details/ PRODUCT

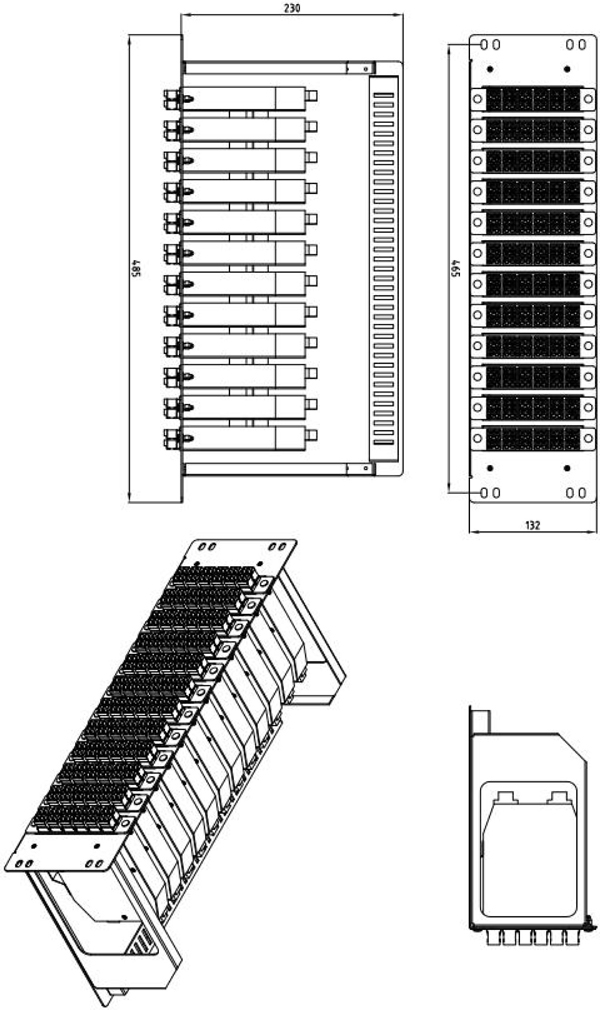

 Dimensions and Capability

Height

Dimensions(W*D*H)

Quantity of Cassette/Plate

Max Capacity

HX-J-1 Cassette

HX-J-2 Cassette

HX-J-3 Cassette

HX-K Plate

3U

485mm*23mm0*132mm

12

12

8

12

288


HX-J Cassette Technical Specifications

SPECIFICATION

HX-J-1

HX-J-2

HX-J-3

Total Fiber Count

12

24

36

Front Adapter Type

LC Duplex

LC Duplex

LC Duplex

Front Port Count

6

12

18

Rear Adapter Type

MTP/MPO

MTP/MPO

MTP/MPO

Rear Port Count

1

2

3


HX-K PlateTechnical Specifications

SPECIFICATION

HX-K-1

HX-K-2

Total Fiber Count

12

24

Front Adapter Type

LC Duplex

LC Duplex

Front Port Count

6

12


Operation Conditions

Operating Temperature

-20℃ -- +60℃

Storage Temperature

-40℃ -- +70℃

Humidity

90% at 30℃

Air Pressure

70kPa – 106kPa


Shipping Information

Package Contents

Patch panel, 1 unit

Package Dimensions(W*H*D)

It depends on the dimensions of the product

Material

Carton box

Weight

It depends on the dimensions of the product
