5*10/100/1000Base-T Industrial Ethernet Switches

Product Show/ PRODUCT

Copyrights Reserved

Product description/ PRODUCT

This device is 5*10/100/1000Base-T Industrial Ethernet Switches. Through the fanless heat dissipation circuit design, wide range of working environment temperature, high protection level and other technologies, it provides excellent industrial quality with high/low temperature resistance and lightning protection, and enhances the reliability and safety of industrial networks. It can better meet the deployment requirements of rail transit, safe city, intelligent transportation, outdoor monitoring and other harsh environments.

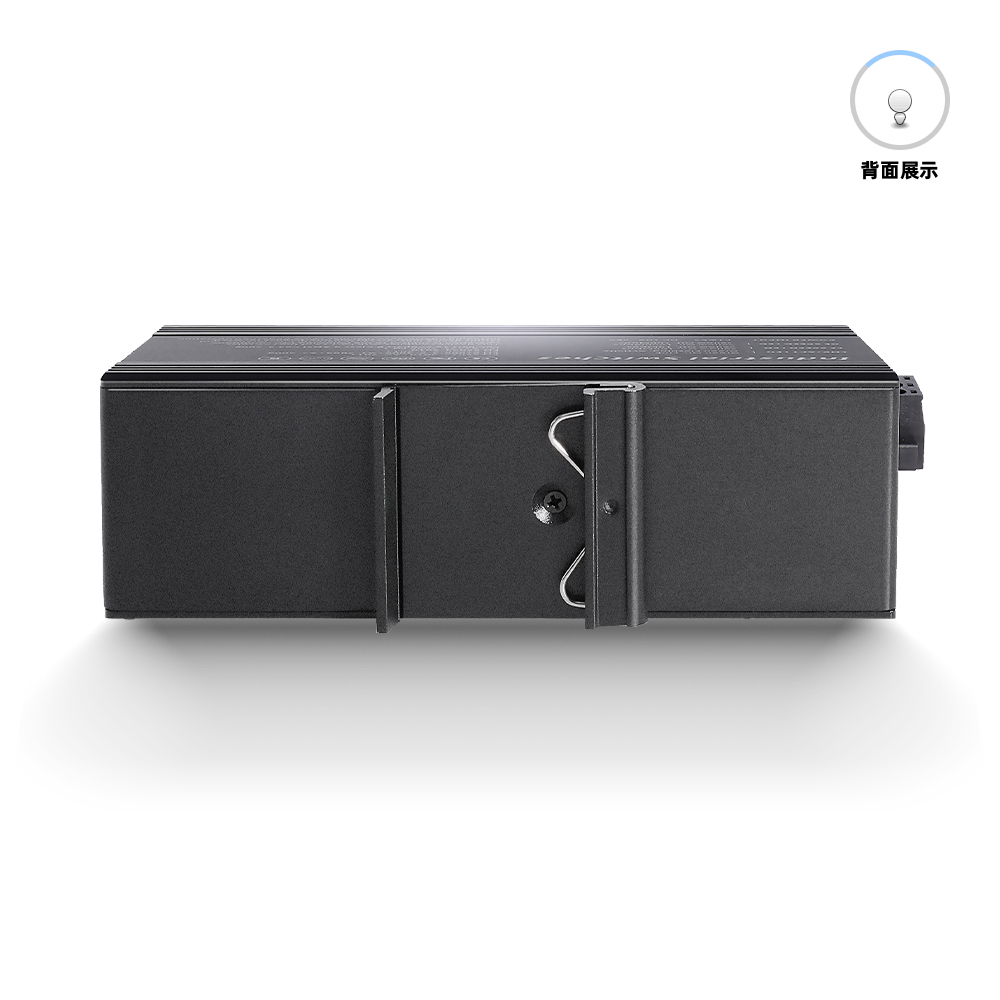

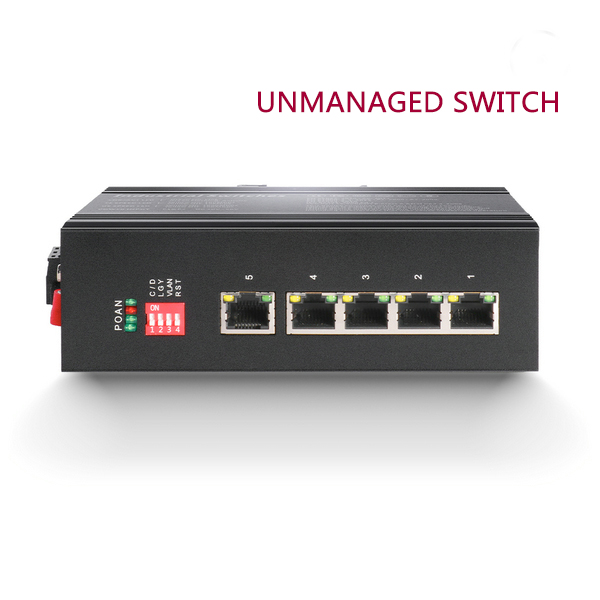

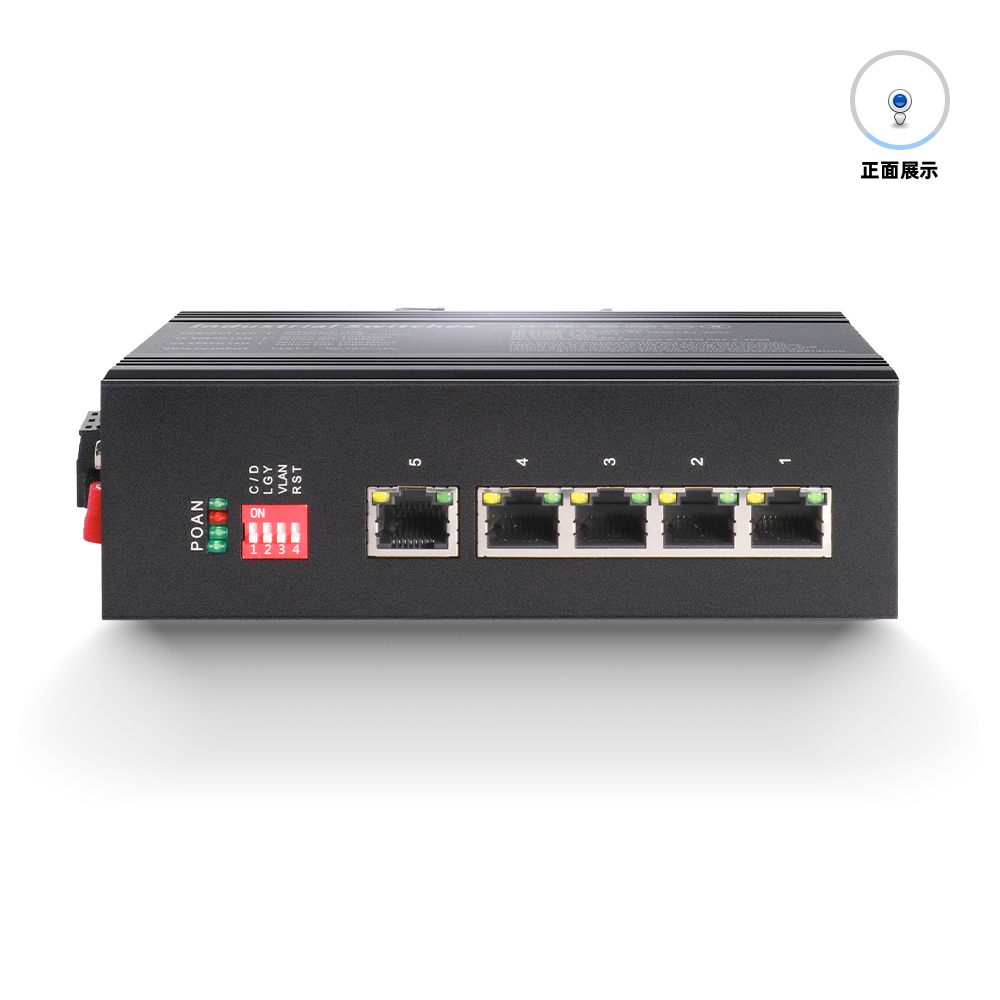

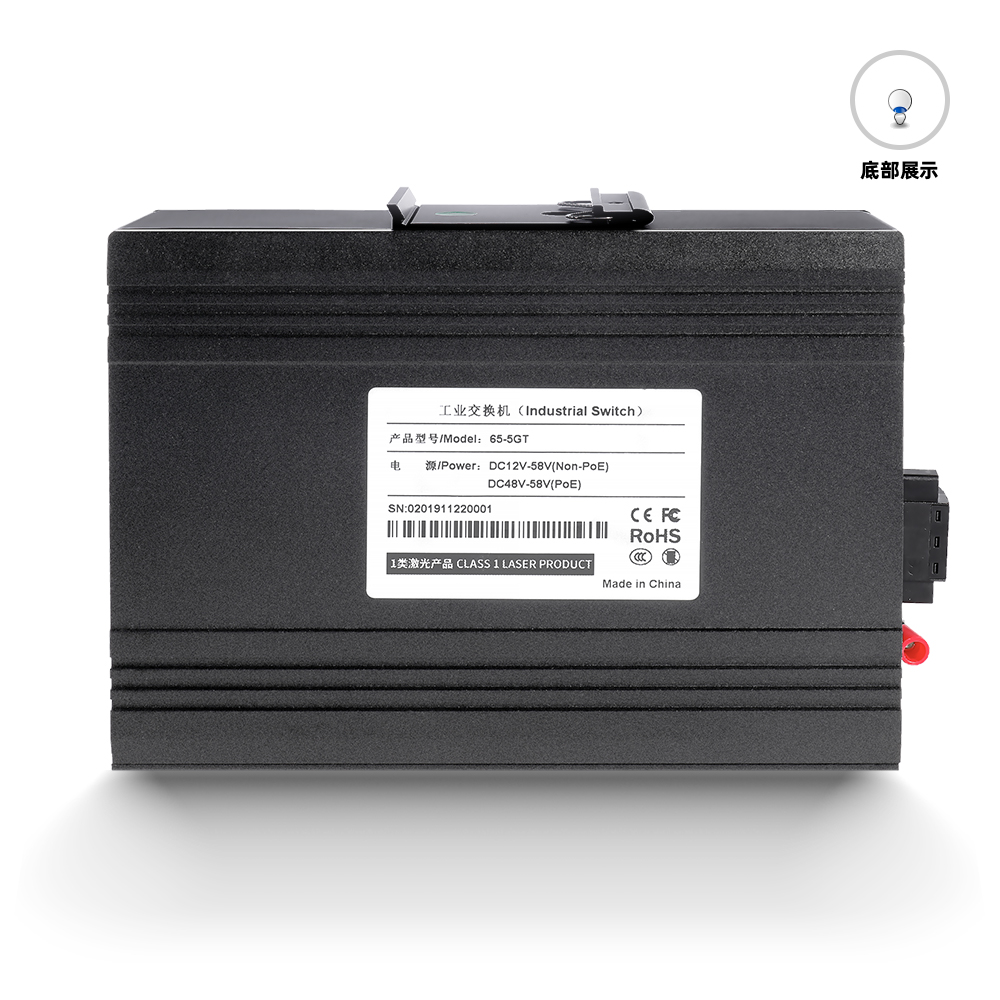

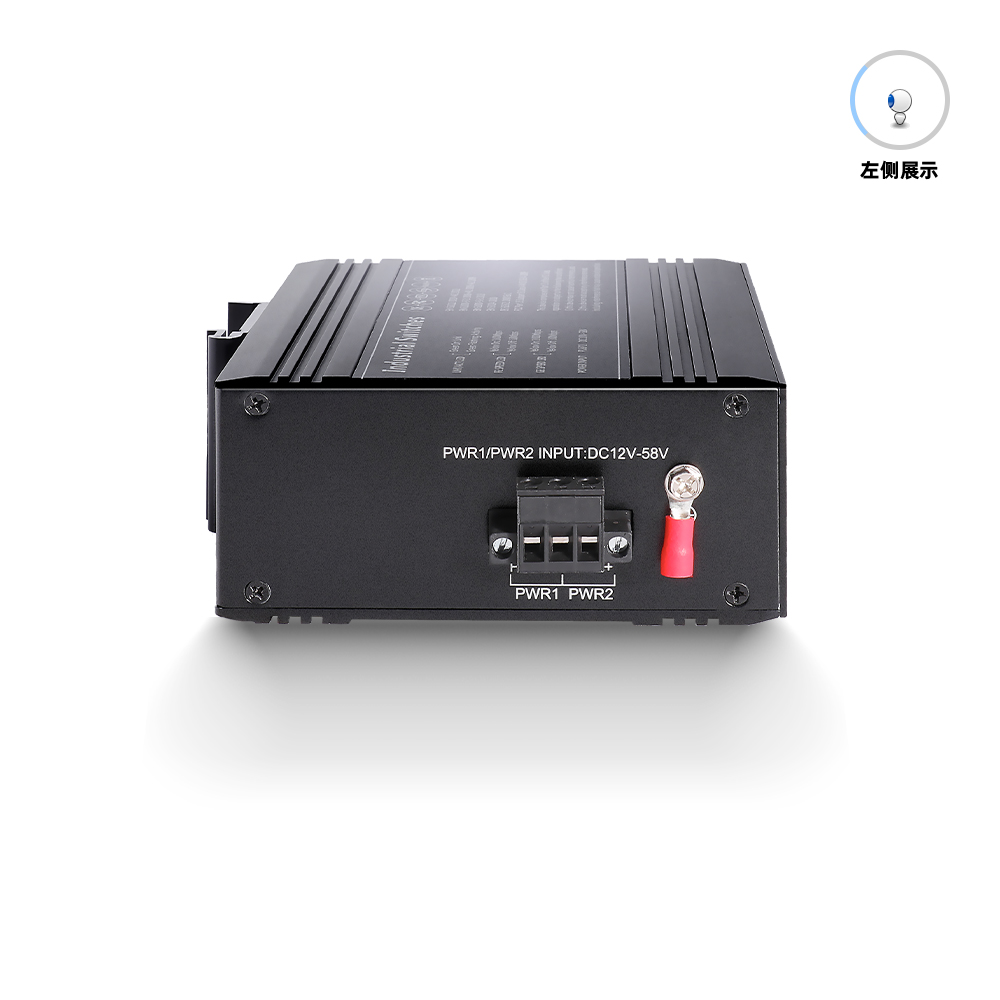

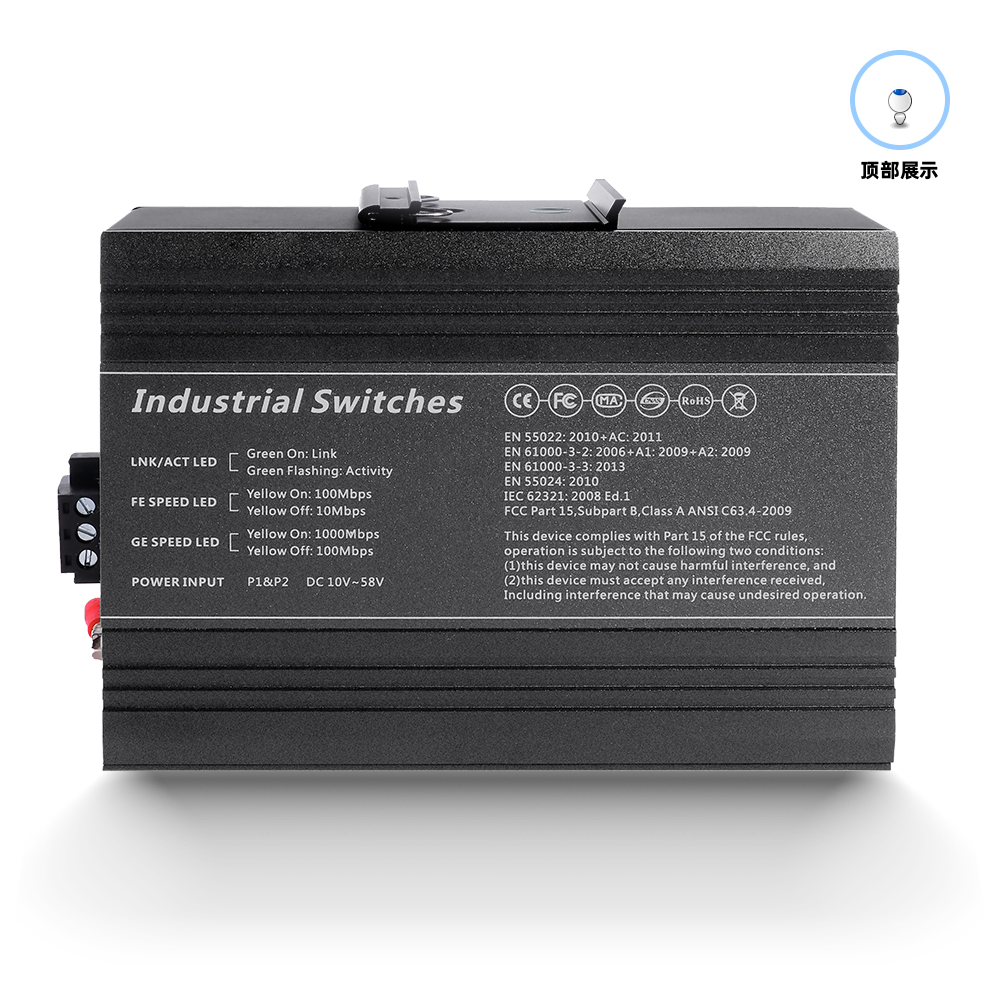

Product Show/ PRODUCT

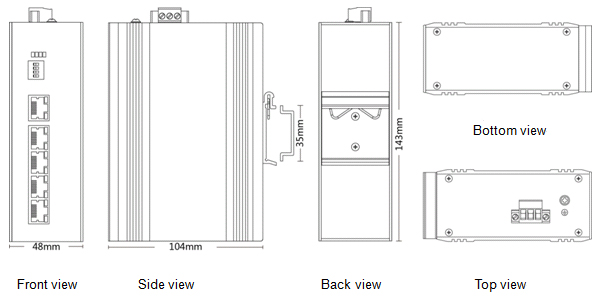

Product Size/ PRODUCT

Main features / PRODUCT

Input Voltage: DC12-58V
Operating Temperature: -40℃ ~ +75℃
Shell: IP40 protection, fanless design
Test Report: CCC, RoHS, FCC, CE
Anti-static: 8KV-15KV
MTBF: 100000 Hour

Product Parameters/ PRODUCT

Provider Mode Ports

Fixed port

5*10/100/1000Base-T

Power interface

Phoenix terminal, redundant dual power supply


ssusupplysupply

LED Indicators

PWR,OPT ,NMC,ALM



DIP Switch

1 C/D

Reserve

2 LGY

Stand/Non-standard PoE Mode

3 VLAN

Port Isolation

4 RST

Reset



Cable type & Transmission distance

Twisted-pair

0-100m(CAT5e,CAT6)

Monomode optical fiber

/

Multimode (optical) fiber

/



Network Topology

Ring topology

Unsupported

Star topology

Support

Bus topology

Support

Tree Topology

Support





Electrical Specifications

Input voltage

DC12-58V

Total Power consumption

<6W

Voltage Alarm

Support



Layer 2 Switching

Switching capacity

10G

Packet forwarding rate

7.44Mpps

MAC address table

8K

VLAN

Unsupported

Buffer

1M

Forwarding delay

<5us

MDX/MIDX

Support

Flow control

Support

Jumbo Frame

Support 10K Bytes

WatchDog

Support

Port Isolation

Support



Environment

Operating temperature

-40℃~+75℃
The device is tested for 4 hours at temperatures in 85℃

Storage temperature

-40℃~+85℃

Relative humidity

5%~95% non-condensing

Thermal methods

Fanless, natural cooling

MTBF

100,000 hours



Mechanical Dimensions

Product size

143X104X48mm

Installation Method

DIN rail

Weight

0.45KG around



EMC & Ingress Protection

IP Level

IP40

Surge protection of Power

IEC 61000-4-5  Level X(6KV/6KV)(8/20us)

Surge protection of Ethernet port

IEC 61000-4-5  Level X(4KV/4KV)(10/700us)

RS

IEC 61000-4-3  Level 3(10V/m)

EFI

IEC 61000-4-4  Level 3(1V/2V)

CS

IEC 61000-4-6  Level 3(10V/m)

PFMF

IEC 61000-4-8  Level 4(30A/m)

DIP

IEC 61000-4-11  Level 3 (10V)

ESD

IEC 61000-4-2  Level 4(8K/15K)

Free fall

0.5m



Authentication

Authentication

CCC, CE, FCC, RoHS



Accessories

Accessories

Device, Terminals, Specification, Certificate, power adapter(optional)
(选配)


Optional model

XPTN-9000-65-5GP

5*10/100/1000Mbps RJ45 Port,PoE 802.3af&at
