1*100Base-X, 2*10/100Base-T Unmanaged Industrial Switches |
1*100Base-X, 2*10/100Base-T Unmanaged Industrial Switches
Product Show/ PRODUCT
Copyrights Reserved
Product description/ PRODUCT
This device 1*100Base-X, 2*10/100Base-T Industrial Ethernet Switches, PoE is optional. Through the fanless heat dissipation circuit design, wide range of working environment temperature, high protection level and other technologies, it provides excellent industrial quality with high/low temperature resistance and lightning protection, and enhances the reliability and safety of industrial networks. The device can be widely applied to various broadband data transmission fields such as intelligent transportation, telecommunications, security, financial securities, customs, shipping, power, water conservancy and oil fields.
Product Show/ PRODUCT

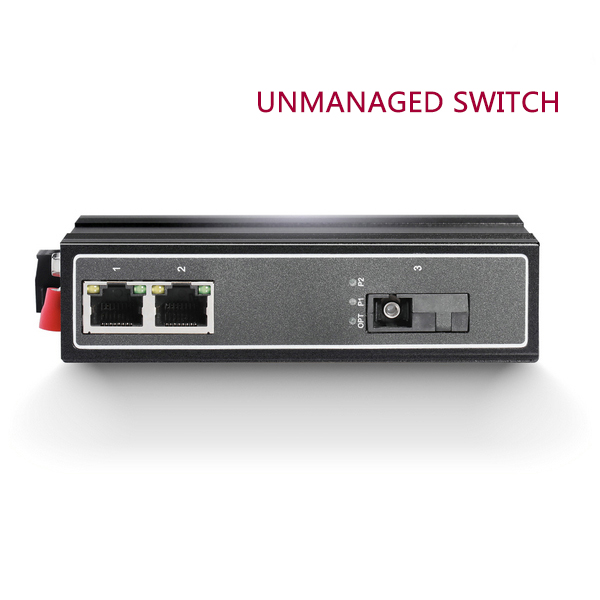

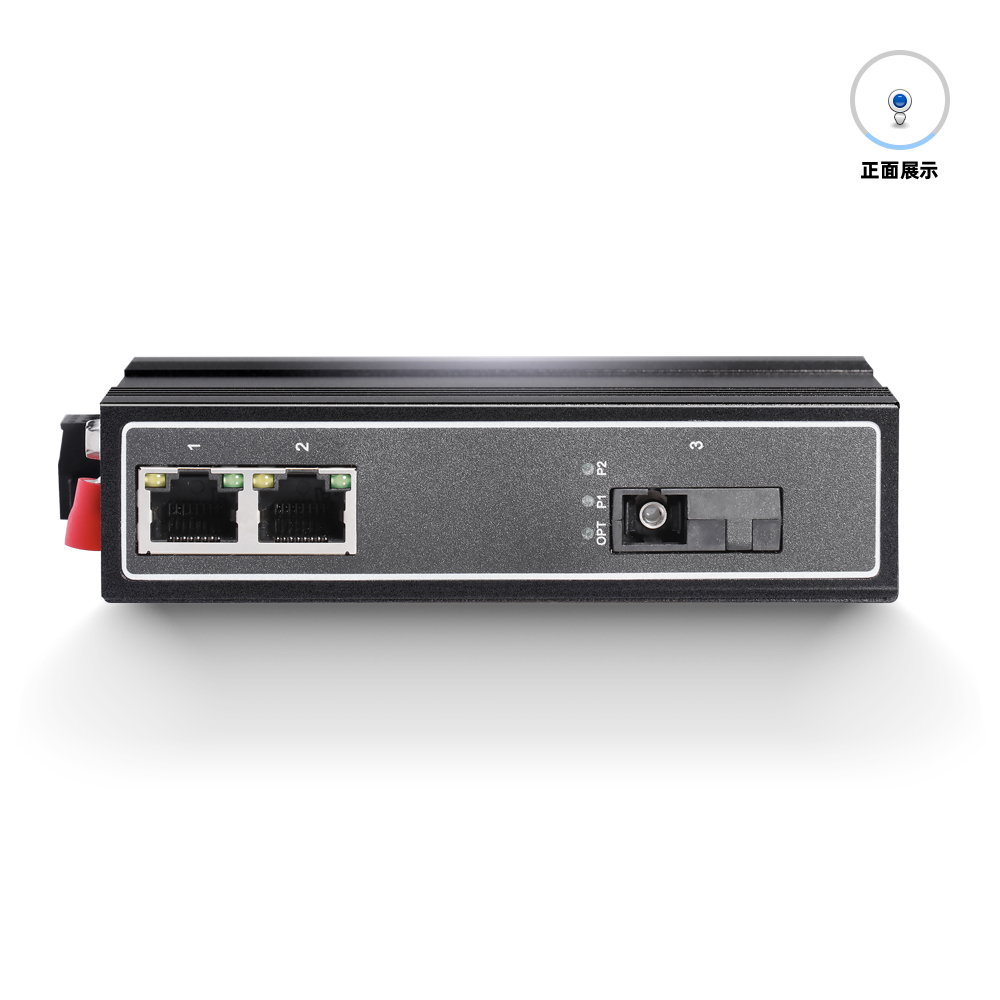

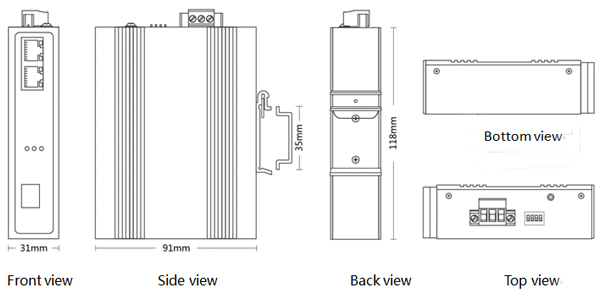

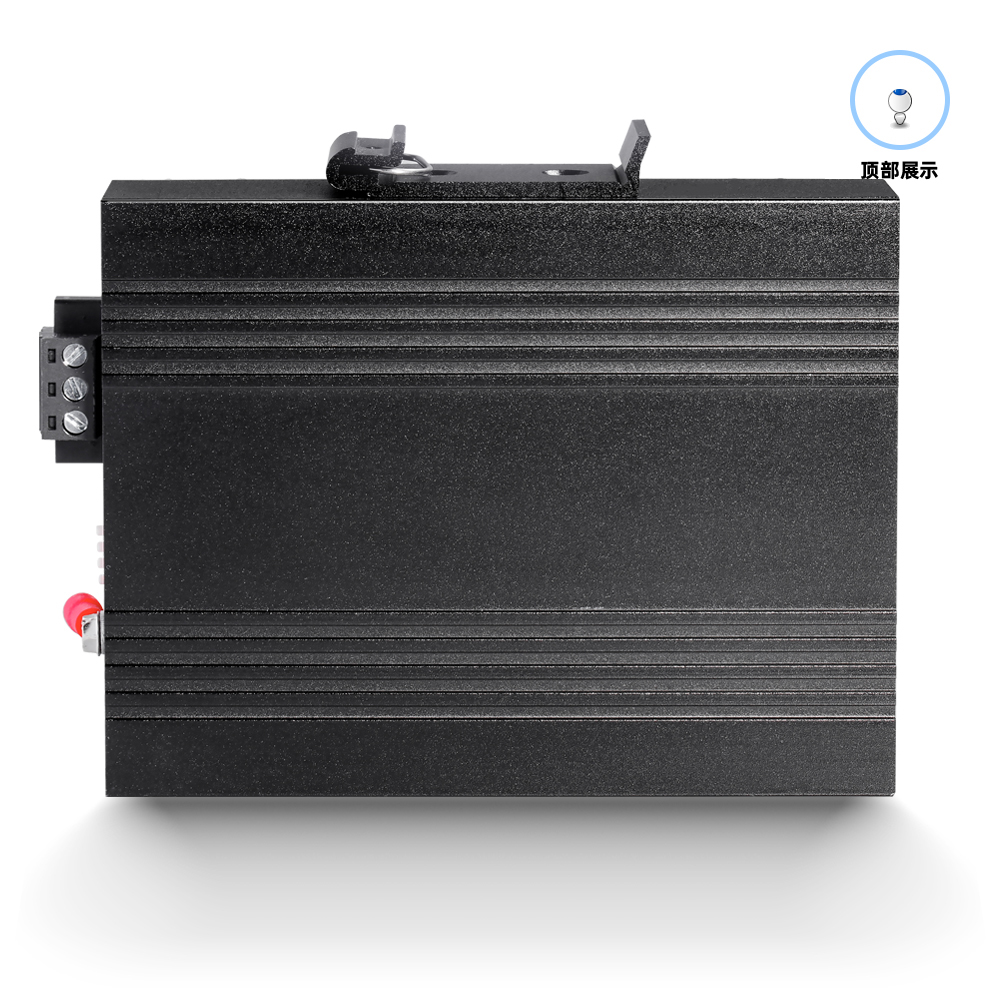

Product Size/ PRODUCT
Main features / PRODUCT
Input Voltage: DC12~58V
Operating Temperature: -40℃ ~ +75℃
Shell: IP40 protection, fanless design
Test Report: CCC, RoHS, FCC, CE
Anti-static: 8KV-15KV
MTBF: 100000 Hours
Product Parameters/ PRODUCT
|
Provider Mode Ports |
|
|
Fixed port |
1*100Base-X, 2*10/100Base-T |
|

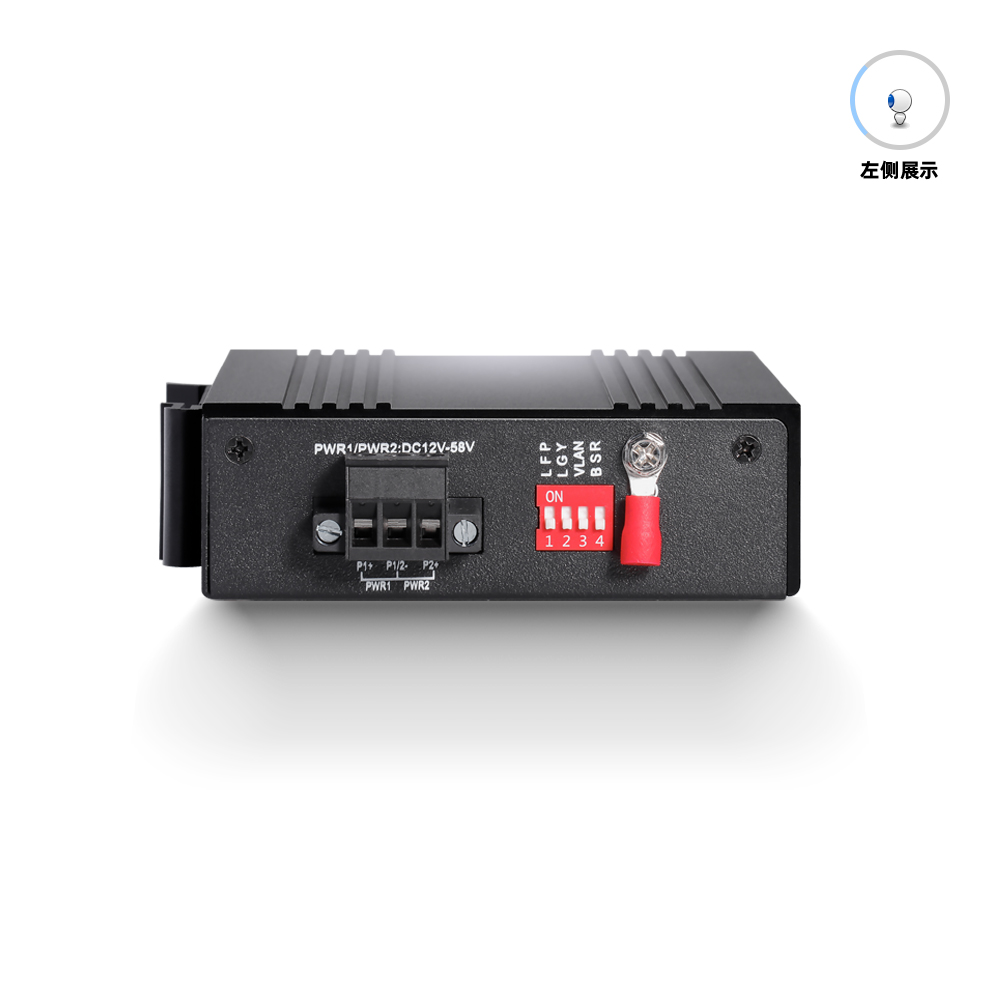

Power interface |
Phoenix terminal, dual power supply |
|
LED Indicators |
P1/P2, OPT |
|
|
|
|
DIP Switch |
|
|
1 LFP |
Remote PD Reset |
|
2 LGY |
LEGACY (Standard & Non-standard PoE) |
|
3 VLAN |
Port Isolation |
|
4 BSR |
Storm Control Configuration |
|
|
|
|
Cable Type & Transmission Distance |
|
|
Twisted-pair |
0-100m（CAT5e,CAT6） |
|
Monomode optical fiber |
20/40/60/80/100KM |
|
Multimode optical fibre |
550m |
|
|
|
|
Network Topology |
|
|
Ring topology |
Unsupported |
|
Star topology |
Support |
|
Bus topology |
Support |
|
Tree Topology |
Support |
|
|
|
|
Electrical Specifications |
|
|
Input voltage |
DC12-58V |
|
Total Power consumption |
<5W |
|
|
|
|
Layer 2 Switching |
|
|
Switching capacity |
1G |
|
Packet forwarding rate |
0.744Mpps |
|
MAC address table |
2K |
|
Buffer |
768K |
|
Forwarding delay |
<5us |
|
MDX/MIDX |
Support |
|
Flow control |
Support |
|
Jumbo frame |
2K bytes |
|
Storm Control |
Support |
|
Port Isolation |
Support |
|
Remote PD Reset |
Unsupported |
|
|
|
|
Environment |
|
|
Operating temperature |
-40℃~+75℃ |
|
Storage temperature |
-40℃~+75℃ |
|
Relative humidity |
10%~90% （non-condensing） |
|
Thermal methods |
Fanless, natural cooling |
|
MTBF |
100,000 hours |
|
|
|
|
Mechanical Dimensions |
|
|
Product size |
91*118*31mm (W×H×D) |
|

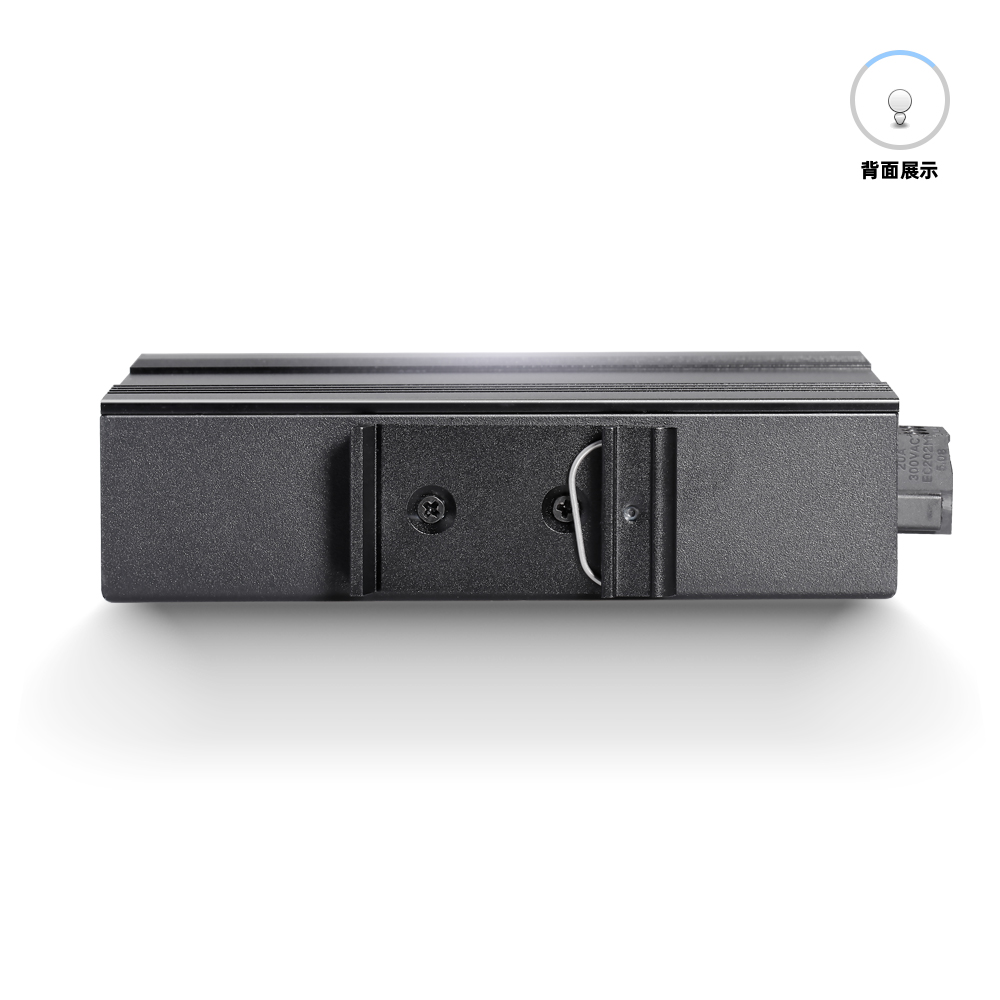

Installation Method |
DIN-rail |
|
Weight |
0.36KG around |
|
|
|
|
EMC & Ingress Protection |
|
|
IP Level |
IP40 |
|
Surge protection of Power |
IEC 61000-4-5 Level 3 (4KV/2KV）（8/20us) |
|
Surge protection of Ethernet port |
IEC 61000-4-5 Level 3 (4KV/2KV）（10/700us) |
|
RS |
IEC 61000-4-3 Level 3（10V/m） |
|
EFI |
IEC 61000-4-4 Level 3（1V/2V） |
|
CS |
IEC 61000-4-6 Level 3（10V/m） |
|
PFMF |
IEC 61000-4-8 Level 4（30A/m） |
|
DIP |
IEC 61000-4-11 Level 3（10V） |
|
EMI |
CLASS A |
|
ESD |
IEC 61000-4-2 Level 4（8K/15K） |
|
Free fall |
0.5m |
|
|
|
|

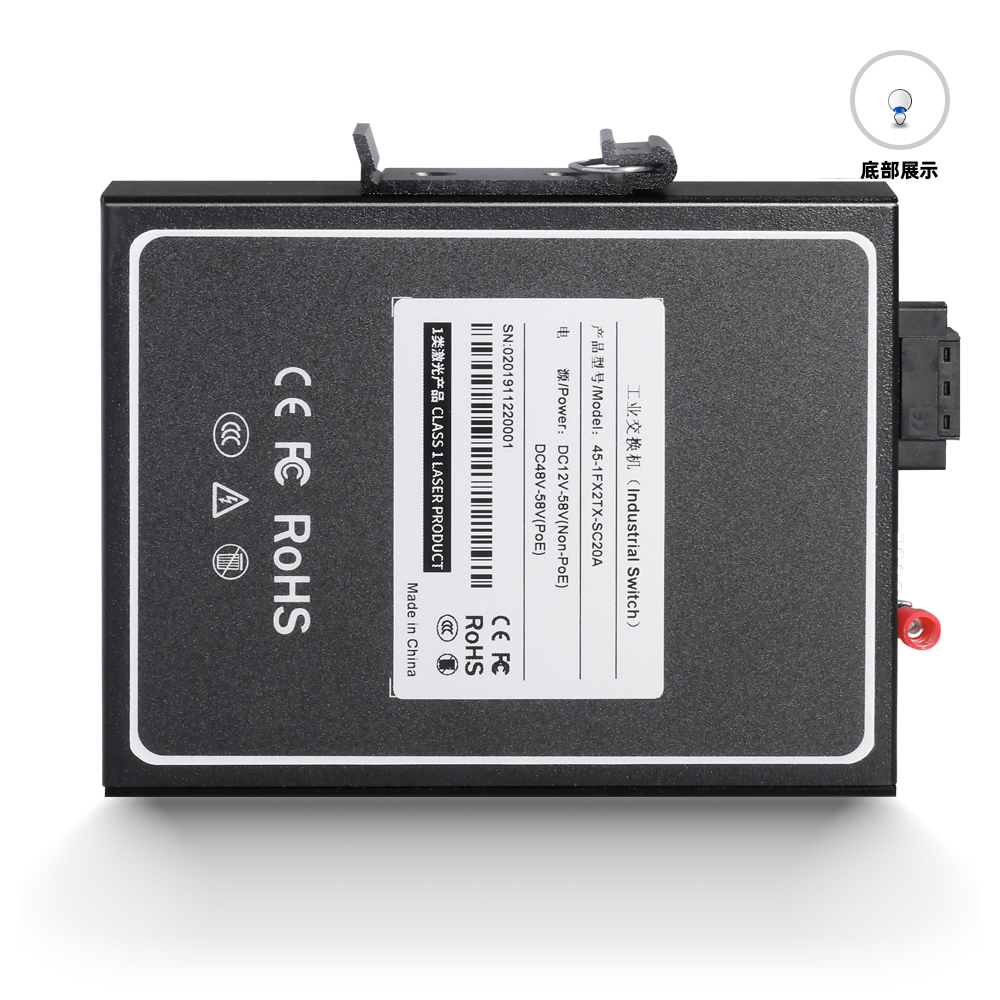

Authentication |
|
|
Authentication |
CCC/CE/FCC/RoHS |
|
|
|
|
Accessories |
|
|
Accessories |
Device, Terminals, Specification, Certificate |
|
|
|
|
Optional Model |
|
|
XPTN-9000-45-1FX2TP-mini |
1*100Base-X SFP fiber port, 2*10/100M RJ45 Port, PoE support 802.3af & at |
|
XPTN-9000-45-1FX2TP -SC- mini |
1*100Base-X SC fiber port, 2*10/100M RJ45 Port, PoE support 802.3af & at |
|
XPTN-9000-45-1FX2TP -FC- mini |
1*100Base-X FC fiber port, 2*10/100M RJ45 Port, PoE support 802.3af & at |
|
XPTN-9000-45-1FX2TP -ST- mini |
1*100Base-X ST fiber port, 2*10/100M RJ45 Port, PoE support 802.3af & at |
