Product description/ PRODUCT
This device is 1* 1000Base-X & 2*10/100/1000Base-T Industrial Ethernet Switches. Through the fanless heat dissipation circuit design, wide range of working environment temperature, high protection level and other technologies, it provides excellent industrial quality with high/low temperature resistance and lightning protection, and enhances the reliability and safety of industrial networks. It can better meet the deployment requirements of rail transit, safe city, intelligent transportation, outdoor monitoring and other harsh environments.

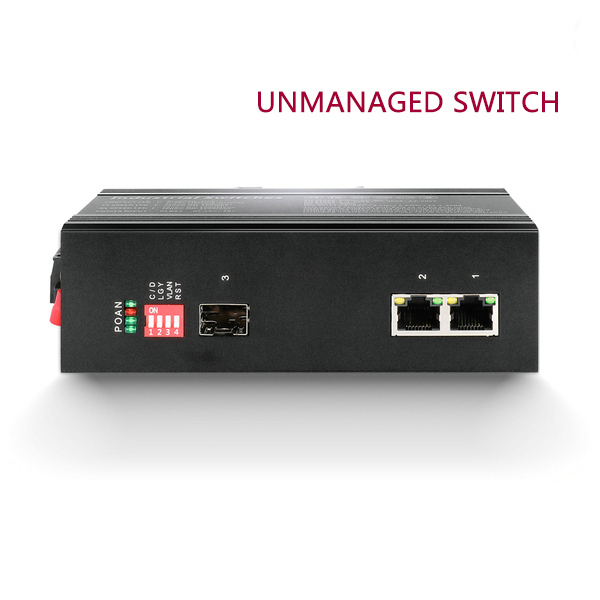

Product Show/ PRODUCT

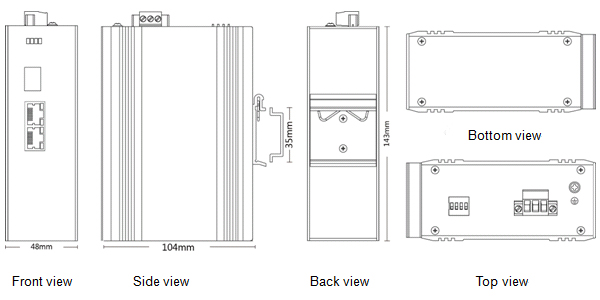

Product Size/ PRODUCT
Main features / PRODUCT
Input Voltage: DC12~58V
Operating Temperature: -40℃ ~ +75℃
Shell: IP40 protection, fanless design
Test Report: CCC, RoHS, FCC, CE
Anti-static: 8KV-15KV
MTBF: 100000 Hours
Product Parameters/ PRODUCT
|
Provider Mode Ports |
|
|
Fixed port |
1*1000 Base-X SFP, 2*10/100/1000Base-T PoE |
|
Power interface |
Phoenix terminal, redundant dual power supply |
|
LED Indicators |
PWR，OPT ,NMC，ALM |
|
|
|
|
DIP Switch |
|
|
1 C/D |
Remote PD Reset |
|
2 LGY |
Stand/Non-standard PoE Mode |
|
3 VLAN |
Port Isolation |
|
4 RST |
Reset |
|
|
|
|
Cable type & Transmission distance |
|
|
Twisted-pair |
0-100m（CAT5e,CAT6） |
|
Monomode optical fiber |
20/40/60/80/100KM |
|
Multimode (optical) fiber |
550m |
|
|
|
|
Network Topology |
|
|
Ring topology |
Unsupported |
|
Star topology |
Support |
|
Bus topology |
Support |
|
Tree Topology |
Support |
|
Hybrid topology |
Support |
|
|
|
|
Electrical Specifications |
|
|
Input voltage |
DC12-58V |
|
Total Power consumption |
<6W |
|
Voltage Alarm |
Support |
|
|
|
|
Layer 2 Switching |
|
|
Switching capacity |
14G |
|
Packet forwarding rate |
10.416Mpps |
|
MAC address table |
8K |
|
VLAN |
Unsupported |
|
Buffer |
1M |
|
Forwarding delay |
<5us |
|
MDX/MIDX |
Support |
|
Flow control |
Support |
|
Jumbo Frame |
Support 10Kbytes |
|
WatchDog |
Support |
|
Port Isolation |
Support |
|
|
|
|
Environment |
|
|
Operating temperature |
-40℃~+75℃ |
|
Storage temperature |
-40℃~+85℃ |
|
Relative humidity |
5%~95% non-condensing |
|
Thermal methods |
Fanless, natural cooling |
|
MTBF |
100,000 hours |
|
|
|
|
Mechanical Dimensions |
|
|
Product size |
143X104X48mm |
|
Installation Method |
DIN rail |
|
Weight |
0.6KG around |
|
|
|
|
EMC & Ingress Protection |
|
|
IP Level |
IP40 |
|
Surge protection of Power |
IEC 61000-4-5 Level X（6KV/6KV）（8/20us） |
|
Surge protection of Ethernet port |
IEC 61000-4-5 Level X（4KV/4KV）（10/700us） |
|
RS |
IEC 61000-4-3 Level 3（10V/m） |
|
EFI |
IEC 61000-4-4 Level 3（1V/2V） |
|
CS |
IEC 61000-4-6 Level 3（10V/m） |
|
PFMF |
IEC 61000-4-8 Level 4（30A/m） |
|
DIP |
IEC 61000-4-11 Level 3 （10V） |
|
ESD |
IEC 61000-4-2 Level 4（8K/15K） |
|
Free fall |
0.5m |
|
|
|
|
Authentication |
|
|
Authentication |
CCC, CE, FCC, RoHS |
|
|
|
|
Accessories |
|
|
Accessories
|
Device, Terminals, Specification, Certificate, power adapter(optional) |
|
|
|
|
Optional model |
|
|
XPTN-9000-65-1GX2GP |
1*1000Mbps SFP Port, 2*10/100/1000Mbps RJ45 Port, |
|
XPTN-9000-65-1GX2GP-SC |
1*100Mbps SC Port |
|
XPTN-9000-65-1GX2GP-FC |
1*1000Mbps FC Port |
|
XPTN-9000-65-1GX2GP-ST |
1*1000Mbps ST Port |
