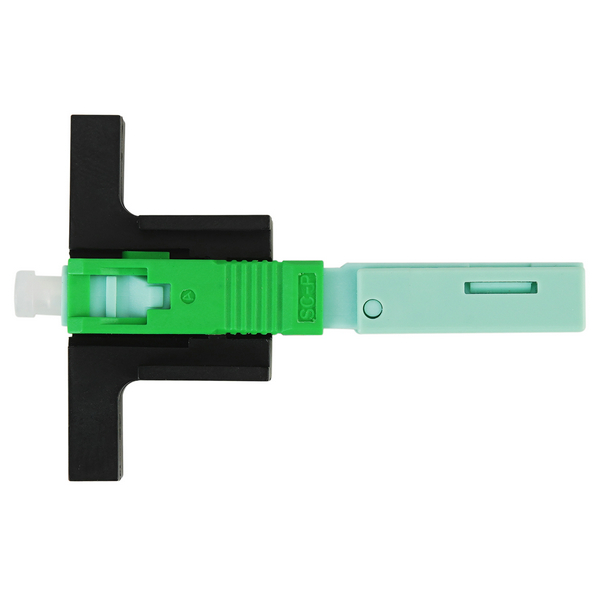

optical fast connector for flat cable K04

Product Show/ PRODUCT

Copyrights Reserved

Product description/ PRODUCT

optical fast connector for flat cable K04

Standard / PRODUCT

 Comply with  international standards:
1.ITU-T and IEC and China standards:
2.《YDT 2341.1-2011 Field Assembled Optical Fiber Active Connector
Part 1: Mechanical Type》
3.《China Telecom fast Connector Standard [2010] No. 953》
4.《01C GR-326-CORE (Issue 3, 1999) General requirements for
single-mode optical connectors and jumpers》
5.《YD/T 1636-2007 Fiber to the Home (FTTH) Architecture and General
Requirements》 Fiber Optic Cable Connector Part 4: Sectional Specification
Optical Fiber Optical Cable Mechanical Connector

Application field / PRODUCT

  • 1.Applied to open FTTH fiber terminal
  • 2.Used in closure boxes, cabinets, teminal boxes, etc.
  • 3.Recovery and maintenance in fiber breakage and other accidents
  • 4.LAN, WAN, data and video transmission
  • 5.Construction and maintenance of fiber access for end users
  •
  • 6.Fiber entry for mobile base stations
  • Features / Benefits/ PRODUCT

    ● Linkage structure design, when docking with equipment and joints, the reserved
    microbend remains unchanged;
    ● Double V-slot structure design, fiber optic docking is stable and reliable;
    ● The core structure: the use of normally closed elastic fastening method,
    excellent technical indicators;
    ● Applicable optical cable: 2.0mm×3.0mm & 2.0mm×1.6mm butterfly cable;
    ● Easy to operate, fast construction, high installation success rate,
    long life cycle, easy maintenance in the later period.


    Optical performance parameters / PRODUCT

    Optical Fast Connector Optical Performance
    (Reference to China Standard Q/CT 2299-2010-6.1)

    Unit( dB)

    Code

    Test Item

    Mechanical  Q/CT 2299-2010-Chapter6.1

    Fusion Splicer Type
    YD/T 2341.2-2011-Chapter 4.7

    Average Value

    Maximum Value

    Average Value

    Maximum Value

    a

    Insertion Loss

    ≤0.3

    Tested with standard plugs and adapters:≤0.5
    Test with any plug and adapter:≤0.7

    ≤0.25

    Tested with standard plugs and adapters:≤0.4
    Test with any plug and adapter:≤0.7

    b

    Return Loss

    ≥40(UPC);≥55(APC)


    ≥50(UPC);≥60(APC)

    Mark1: IL and RL Test at 1310nm. If need test 1550nm, Please tell us first.

    Mark2:IL and RL average and Maximum vale make as customer’s requirement.

    Mark3:Return Loss can customized  UPC standard -45~-50dB;APC Standard -55~-60dB

    mechanical character / PRODUCT

    Optical Fast Connector mechanical character
    (Reference to standard Q/CT 2299-2010-6.3)

    Unit( dB)

    ITEM

    Tet Name

    Test conditions

    Judgement Standard

    Insertion Loss Variation

     Test Result

    Mechanical

    Fusion Splicer

    a

    Repeatable
    Assemblability

    Assemblability Times: 5 Times

    ≤0.3

    No Requirement

    No mechanical damage, no obvious scratches on the pin surface

    b

    vibration

    frequency: 10-50Hz
    Sweep frequency:45 Times per minute
    Amplitude: 0.75mm Single Amplitude
    Time:Three director ,each 2 hours

    ≤0.3

    ≤0.25

    No mechanical damage, such as deformation, cracking, slack, etc.

    c

    Drop

    Height:1.5meter from sample head
    Test times: 8 Times

    ≤0.3

    ≤0.25

    No mechanical damage, such as deformation, cracking, slack, etc

    d

    Repeat Plug

    Plug Times: 10

    ≤0.3

    ≤0.25

    No mechanical damage, such as deformation, cracking, slack, etc

    e

    mechanical
    Durability

    Plug Times: 500

    ≤0.3

    ≤0.25

    No mechanical damage, such as deformation, cracking, slack, etc

    f

    Tensile

    Telcom  Standard Q/CT 2299-2010-7.14:
    0.125mm bare fiber: 4N,
    No online monitoring of Optical performance;
    0.25mm fiber type :4N
    No online monitoring of Optical performance;
    0.9mm fiber type :10N
    online monitoring of Optical performance;
    Fiber optic cable :20N
    online monitoring of Optical performance;
    Fiber optic cable :30N
    No online monitoring of Optical performance;;
    Time:2 Minute

    ≤0.3

    ≤0.25

    No mechanical damage, such as deformation, cracking, slack, etc

    j

    Tensile

    Communication Standard YD/TT 2341.1-2011-5.15
    Load weight:250μm fiber: 4N
    900μmFiber : 10N
    Fiber optic cable 2.0mm and drop cable  :20N
    Fiber optic cable 3.0mm: 50N;
    Load Time: fiber 30s,fiber optic cable 2min;
    Load rate: 50N/min The distance between the load point and the mechanical field connector: L=22cm~28cm

    ≤0.3

    ≤0.20

    No mechanical damage, such as deformation, cracking, slack, et

    g

    Twist

    Load Weight:Fiber Optic cabel 15N
    Rate: 10 Times/Minute
    times: 200Times

    ≤0.3

    ≤0.25

    No mechanical damage, such as deformation, cracking, slack, et

    Mark 1: Fusion Splicer type can not be  repeatable assembly test;

    Mark 2:Repeat assembly testing is Mainly assess the deterioration of the amount of insertion loss.
    It requirment insersion loss  deterioration  ≤0.3. If insersion loss become better,then it
    is qualified ;

    Mark 3:After Test, Return Loss Variation≤5dB

    Working environment requirements / PRODUCT


    Item



    a

    Operating temperature

    -40℃ ~+85℃

    b

    Storage temperature

    -40℃ ~+85℃

    c

    Relative humidity

    ≤95%(+30℃ hours)

    d

    Atmospheric pressure

    62kPa~106kPa

    Environmental protection materials / PRODUCT

    Non-corrosive materialand, no other harmful effects on human health and other equipment/facilities
    /cooperating parts

    Material corrosion resistance / PRODUCT

    All parts of this products material is preservative

    Package / PRODUCT

    There have two package way :

  • 10 Pics put in one Plastic boxes. Then Plastic boxes put in one out carton.
  •  Each pic put in one plastic bag, then plastic bag put in one out carton
  • Transportation / PRODUCT

     Transportation need avoid collision, fall, rain (snow) or sun exposure

    Storage conditions / PRODUCT

    well-ventilated, dry, non-corrosive gas or sunlight warehouse,
    Indoor temperature is -25℃~+55℃

    Quality assurance / PRODUCT

      12 months quality guarantee. During quality guarantee period,replace defective
    products excep tmanual damage .
