1-core TPU round outdoor overhead optical cable

1core 3.0 TPU round cable

Product Show/ PRODUCT

Copyrights Reserved

Product description/ PRODUCT

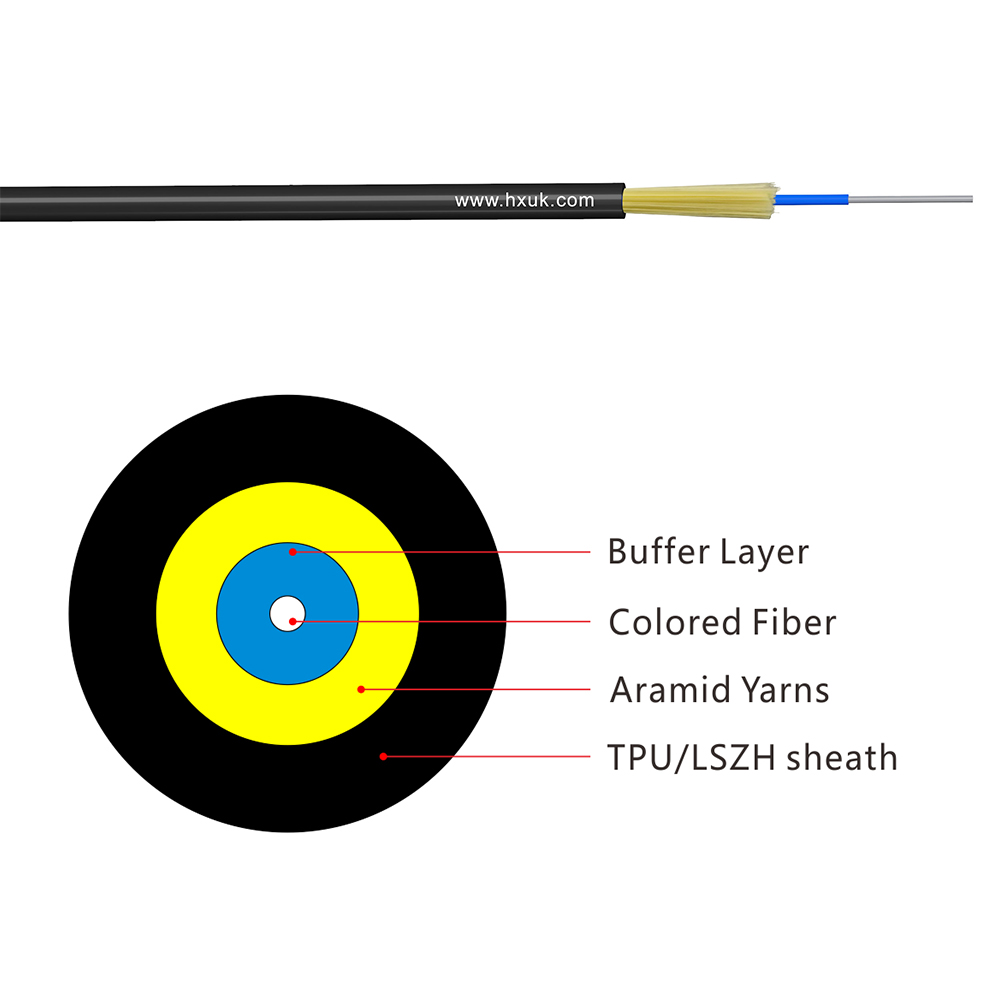

This cable is made by evenly applying strands of Aramid yarns as the strength member over ф900μmtight buffer fibers and then is completed with sheath.

Product Description/ PRODUCT

Product Features/ PRODUCT

♦Optical cable with Aramid yarns reinforcement
♦For customer connection
♦Fully dielectric cable
♦Last mile connection
♦LAN and FTTX networks
♦Distribution network
♦ODF connections
♦Inside house OLT connection
♦G.657B3optical fiber
♦ Flame retardant TPU sheathing

Optical Characteristics/ PRODUCT

Fiber type		Maximum attenuation for uncabled fibers [dB/km]
Fiber type		1310 nm	1383 nm	1490 nm	1550 nm	1625 nm
G.657A1	Bend insensitive fiber fully compatible with G.652D standard, bend radius 10-15 mm	≤0.35	≤0.35	≤0.24	≤0.20	≤0.23
G.657A2	Bend insensitive fiber fully compatible with G.652D standard, bend radius 7.5 mm	≤0.35	≤0.35	≤0.24	≤0.20	≤0.23
G.657B3	Bend insensitive fiber fully compatible with G.652D standard, bend radius 5 mm	≤0.35	≤0.35	≤0.24	≤0.20	≤0.23

Technical Parameters/ PRODUCT

Item	Description
Tight Buffer Fiber	Fiber Count	1FO
	Fiber Type	G.657B3
	Fiber Color	Natural
	Diameter	0.9mm
	Tight Buffer Color	Blue or Customized color
	Material	LSZH
Strength Member	Material	Aramid yarn
Outer Sheath	Material	TPU
	Color	Black
	Thickness	0.7~0.8mm
	Diameter	3.0±0.1mm
Span	50~100m
Installation Sag	1%
Max. Wind Speed	50km/ hour
Tensile	800N
Strain	0.6%
Cable Weight	9.8kg/ km
