GYFXTBY fiber cable

Product Show/ PRODUCT

Copyrights Reserved

Product description/ PRODUCT

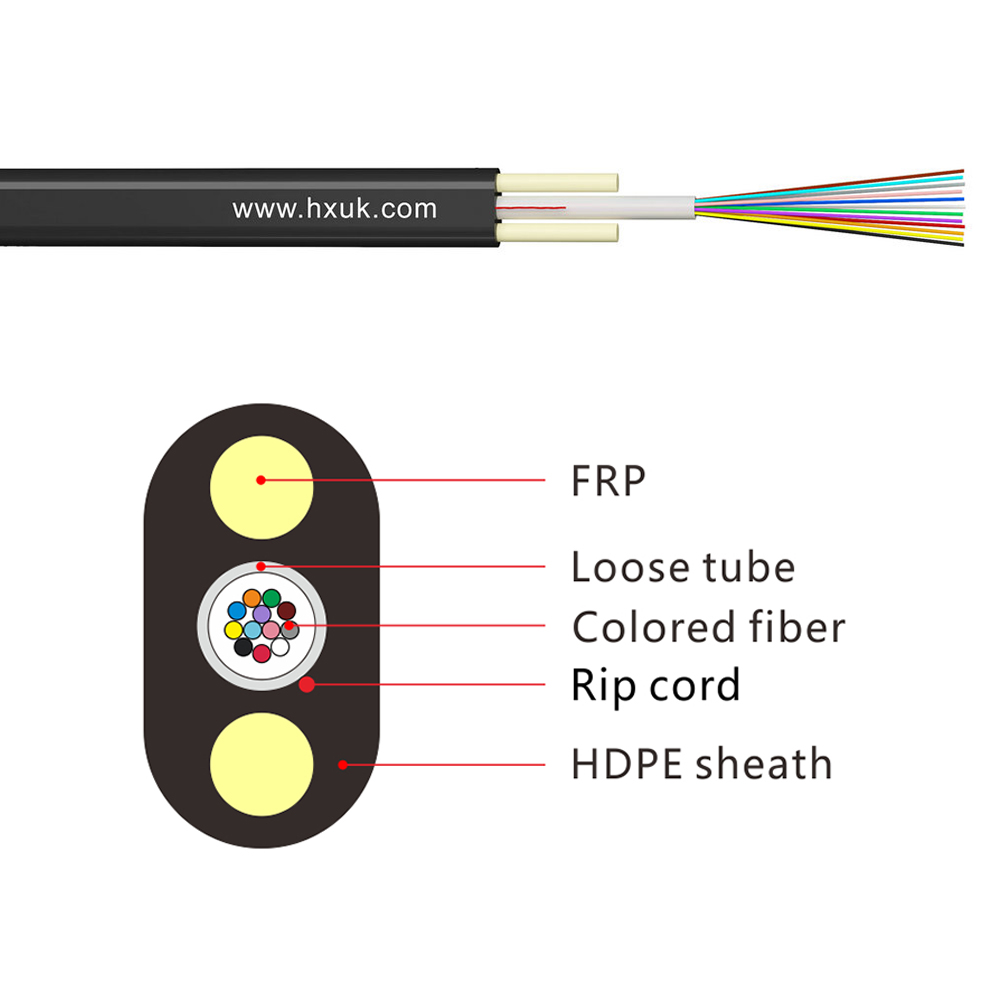

GYFXTBY fiber cable is an arc runway fiber cable, which is made of multiple ( 1 – 12 cores ) 250μm colored fibers embedded in the internally filled waterproof compound loose tube made of high-modulus plastic, a non-metallic tensile element ( FRP ) is placed on both sides of the loose tube, and a rip cord is placed on its outer layer, and then the high-density polyethylene is extruded to form an HDPE sheath.

Product Description/ PRODUCT

Product Features/ PRODUCT

Accurately controlling the residual length of optical fiber ensures good tensile properties and temperature characteristics of optical cable ;
PBT loose tube material has good resistance to hydrolysis, filled with special ointment to protect the optical fiber ;
Fiber optic cable is non-metallic structure, light weight, easy laying, anti-electromagnetic, lightning protection effect is better ;
Larger number of core than ordinary butterfly-shaped optical cable products, suitable for access to more densely populated villages ;
Compared with butterfly-shaped optical cable, runway structure products have stable optical transmission performance with no risk of water accumulation, icing and egg cocoon ;
Easy to peel, reduce the time of pulling out the outer sheath, improve the construction efficiency ;
It has the advantages of corrosion resistance, UV protection and environmental protection

Optical Characteristics/ PRODUCT

•YD / T769-2010, GB / T 9771-2008, IEC794 and other standards ;

Optical Characteristics/ PRODUCT

		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm	-	-	≤3.5dB/km	≤3.5dB/km
	@1300nm	-	-	≤1.5dB/km	≤1.5dB/km
	@1310nm	≤0.45dB/km	≤0.45dB/km	-	-
	@1550nm	≤0.30dB/km	≤0.30dB/km	-	-
	@850	-	-	≥500MHZ·km	≥200MHZ·km
Bandwidth （Class A）	@1300	-	-	≥1000MHZ·km	≥600MHZ·km
Numerical aperture	-	-	-	0.200±0.015NA	0.275±0.015NA
Cable Cutoff Wavelength	-	≤1260nm	≤1480nm	-	-

Technical Parameters/ PRODUCT

ber Count	Cable Diameter mm	Cable Weight Kg/km	Tensile Strength Long/Short Term N	Crush Resistance Long/Short Term N/100m	Bending Radius Static/Dynamic mm
1-12 core	4.5*8.5	46	400/1200	300/1000	30D/15D

Storage/Operating Temperature : -20℃ to + 60℃
